Brand:Pelco
Model:P2230L-FW0
P2230L-FW1
Lens:4.5mm (wide)-135mm (tele)

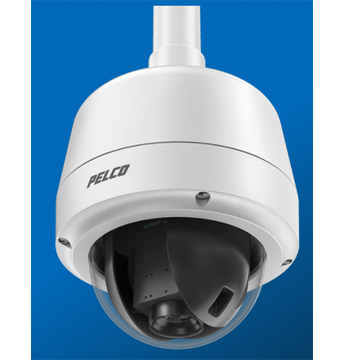

P2230L-FW0 P2230L-FW1 Pelco High-Speed PTZ Camera 30X
Product Features
Up to Full HD 1080p
Up to 60 Images per Second (ips)
H.265, H.264, and MJPEG Video Encoding
Tilt Range +1° to –90° Degrees
Low Light Down to 0.1 lux
Up to 120 dB Wide Dynamic Range (WDR)
Professional Analytics Suite including:
– Loitering Detection,
– Object Counting,
– Motion Detection,
– Camera Sabotage,
– and Audio Detection
Pelco’s Smart Compression Technology
Power Over Ethernet (802.3at/bt), 24 VAC, 48 VDC
Electronic Image Stabilizer (EIS)
IK10
Up to 2 TB Edge Storage with micro SDHC/SDXC Card
System Model Numbers
Model Number Resolution Optical Zoom Color Type Bubble Description
P2230L-EW0 2MP 30x White Environmental Pendant Smoked Spectra Pro Series 2,Environmental Pendant,Smoked with White Trim Ring
P2230L-EW1 2MP 30x White Environmental Pendant Clear Spectra Pro Series 2,Environmental Pendant,Clear with White Trim Ring
P2230L-FW0 2MP 30x Black Indoor In-Ceiling Smoked Spectra Pro Series 2,Indoor In-Ceiling, Smoked with White Trim Ring
P2230L-FW1 2MP 30x Black Indoor In-Ceiling Clear Spectra Pro Series 2, Indoor In-Ceiling, Clear with White Trim Ring
Recommended Mounts
Part Number Mount
IWM-SW,IWM24-BK Wall mount, white (RAL 9003) or black (RAL 9017) finish; can be adapted for corner, parapet, or pole application
IWM24-SW,IWM24BK Wall mount, with integral 24 VAC, 100 VA transformer; white (RAL 9003) or black (RAL 9017) finish; can be adapted for corner, parapet or pole application
WMVE-SW Environmental wall mount (white, RAL 9003); can also be mounted using a pole
PP350-SW
PP351-SW
PP450-SW
PP451-SW Parapet; wall/rooftop mount
m.fei-long.com.cn 13794494587
Power Supplies
Item Specification
WCS1-4 Model (WCS Series ) Outdoor single 24 VAC camera power supply, power cord not included
ECPS-48VDC-5A 48 VDC indoor power supply
POE190U1BT-EUK 90 W HPoE 802.3BT single port injector EU and UK power cord included
POE190U1BT-US 90 W HPoE 802.3BT single port injector US power cord included
POE190U1BT 90 W HPoE 802.3BT single port injector power cord not included
Camera/Optics
Specification Value
Sensor Type 1/2.8-inch CMOS Sensor
Optical Zoom 30X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/4.4, focal length 4.5 mm (wide) ~ 135 mm (tele)
Angle of View
Horizontal 59.8° (wide) ~ 2.34° (tele)
Vertical 40.5° (wide) ~ 1.48° (tele)
Diagonal 67.8° (wide) ~ 2.77° (tele)
Aspect Ratio 16:9
Light Sensitivity
Color (33 ms) 0.1 lux
Color (125 ms) 0.025 lux
Mono (33 ms) 0.05 lux
Mono (125 ms) 0.01 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 45 dB gain at 30 IRE (30% of
signal level)
Day/Night Capabilities Yes
Shutter Range 1/4 ~ 1/30,000 sec
Signal-to-Noise Ratio >50 dB
IR Cut Filter Yes
True Wide Dynamic Range Up to 120 dB Max; 100 dB per IEC 62676-5
Iris Control Auto Iris with Manual Override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Digital Image Stabilization (DIS) Yes
Scanning Progressive Scanning System
