Brand:AXIS
Model:AXIS M1135
Lens Focal length 3-10.5 mm
Horizontal field of view 90-33 °
Vertical field of view 49-19 °
or other lens :Computar 12.5-50 mm DC-iris

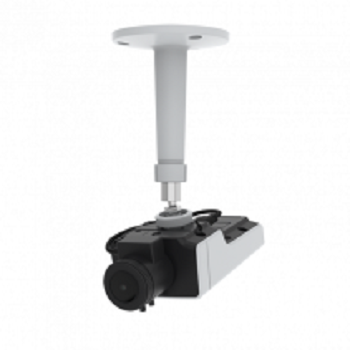

AXIS M1135 Network Camera
2 MP premium affordable surveillance
Compact and flexible design
Lightfinder and Forensic WDR
Built-in microphone for audio recording
Exchangeable CS mount lens
Zipstream supporting H.264 and H.265
Technical specifications
Models: AXIS M1135 / AXIS M1135 Barebone
Camera
Image sensor CMOS
Image sensor size 1/3
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 1920x1080
Max frames per second 30
Electronic image stabilization –
Lens
Focal length 3-10.5 mm
Horizontal field of view 90-33 °
Vertical field of view 49-19 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support
Yes
Network
PoE Class 2
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability PVC free
Power
Power (max) 6.5 W
Power (average) 3.8 W
DC input voltage 8-28 V
Mounts
AXIS T91A04 Camera Holder ?” NPS
AXIS T91A05 Camera Holder 1.5" NPS
AXIS T91A23 Tile Grid Ceiling Mount
AXIS T91A33 Lighting Track Mount
AXIS T91B53 Telescopic Ceiling Mount
NAME AXIS REGION PART NUMBER
AXIS M1135 Barebone AR, AU, BR, CN, EU, JP, KR, UK, US 01768-041
AXIS M1135 AR, AU, BR, CN, EU, JP, KR, UK, US 01768-001
AXIS M1135, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01768-021
AXIS M1135 IN 01768-113
