Brand:AXIS
Model: P3245-LVE
Lens Focal length * 3.4 - 8.9 / 9 - 22 mm
Horizontal field of view 100-36 / 35-15 °
Vertical field of view 53-20 / 19-9 °

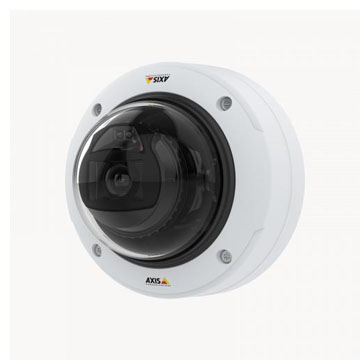

AXIS P3245-LVE Network Camera
Streamlined outdoor-ready HDTV 1080p fixed dome for any light conditions
HDTV 1080p video quality
Lightfinder 2.0, Forensic WDR and OptimizedIR
Two-way audio and I/O connectivity
Signed firmware and secure boot
Two lens alternatives
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P3245-LVE 9 mm / AXIS P3245-LVE 22 mm
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.10 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Focal length * 3.4 - 8.9 / 9 - 22 mm
Horizontal field of view * 100-36 / 35-15 °
Vertical field of view * 53-20 / 19-9 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
Network PoE Class 3
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Sustainability PVC free –
Audio and I/O
AXIS Dome Intrusion Switch C
AXIS T6101 Audio and I/O Interface
Seamlessly add audio and/or I/O ports to your Axis cameras
AXIS T6112 Audio and I/O Interface
Seamlessly add audio and I/O ports to your Axis cameras – microphone included
AXIS T8331-E PIR Motion Detector
Outdoor detection of any motion
AXIS T8355 Digital Microphone 3.5 mm
Digital microphone with lossless interface for superior audio
Terminal Block to 3.5 mm Audio Extension
Cabinets
AXIS T98A17-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipment.
AXIS T98A18-VE Surveillance Cabinet
Robust cabinets for easy installation of critical system equipment
Covers and Domes
AXIS TP3801-E Black/White Casing
Installation Tools
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
Media Converters
AXIS T86 media converter from left
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DC
Miscellaneous
AXIS Bird Control Spike
Keep your outdoor network cameras clean
AXIS Safety Wire 3 m
Mounts
Requires additional accessory
AXIS T91B47 Pole Mount
For different pole diameters
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
AXIS T91B63 Ceiling Mount
AXIS T91B67 Pole Mount
Pole mount for fixed dome cameras
AXIS T91D61 Wall Mount 1.5” NPS
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
AXIS T91H61 Wall Mount
Quick connection and room for more
AXIS T94M02L Recessed Mount
AXIS T94P01B Corner Bracket
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
AXIS T94S01P Conduit Back Box
IP66/IP67 rated outdoor back box with conduit entrance
AXIS T94T01D Pendant Kit
AXIS T94V01C Dual Camera Mount
Back-to-back camera installation made easy
AXIS TP3601 3/4" Conduit Adapter
AXIS TP3602 1/2" Conduit Adapter
AXIS TP3902 Retrofit Kit
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Network Switches
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
PoE Extenders
AXIS Long range PoE Extender kit
Robust solution for covering long distances
AXIS T8129 PoE Extender
The smart solution for covering distances
AXIS T8129-E Outdoor PoE Extender
Robust, outdoor-ready solution for covering distances
Power over Ethernet
AXIS T8120 Midspan 15 W 1-port
Storage
AXIS Edge storage suveillance card 128 GB from the front
AXIS Surveillance Card 128 GB
High endurance microSDXC? card
AXIS edge surveillance card 256 GB from the front
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
AXIS Surveillance Card 64 GB
High endurance microSDXC? card
Surge protectors
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
