Model：D3250-10-I-P
Lens：2.8 3.6mm

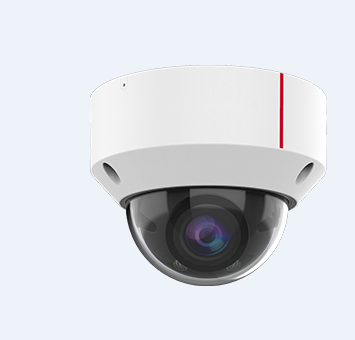

D3250-10-I-P(2.8mm) 1T 5MP AI IR Fixed Dome Camera
1 TOPS computing power
Supports behavior analysis, crowd flow analysis, target detection, and person detection
1/2.7" CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Accessory
ACC3231
Pole Mounted Bracket of Box Camera
ACC3311
Half or Mini Dome Bracket
ACC3321
Pendant Bracket of Half Dome Camera
Huawei Haowang D3050-10-I-P (2.8mm)
The main parameters
Product Type Smart Camera
Product shape hemisphere
Hardware performance
Imaging device 1/2.7 inch progressive scan CMOS
Effective pixels: 5 million
Lens parameters Focal length: 2.8mm
Fill light: 30m
Maximum aperture: F1.6
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter)
Black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter)
Electronic shutter 1/3 second to 1/68250 second
Other parameter support functions: support behavior analysis, support anomaly detection, support face/body detection, support crowd situation analysis, support video anti-shake, support strong light suppression
Memory: DDR3, 2*256MB
Flash：256MB
Day and night mode: Auto/Color/Black and White
Gain control: automatic/manual
Wide dynamic range: 120dB
Backlight compensation: support
White balance: automatic/manual/auto tracking/one-click trigger
Electronic fog defoggery: automatic/manual/off
Digital noise reduction: 2D/3D noise reduction
Audio/Video
Resolution 2560×1920
Compression format H.265/H.264/MJPEG
Video frame rate 30/25/20fps
Compression code rate 512Kbps-16Mbps
Interface parameters
Network interface 1 RJ45 10M/100M adaptive Ethernet port
Other parameters
Network protocols TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3) , 802.1x, QoS, DDNS, SMTP, PPPOE
Security security mode: username and password authentication, support 802.1x, HTTPS secure access
Media security: only supports AES256 encryption of SDK code stream
Protection grade IP67, lightning protection 2kV
Power supply voltage DC12V±20%, POE (802.3af)
Power supply maximum power consumption: 4.2W
Typical power consumption: 2.8W
Product size equipment: 104×104×98mm
Packaging: 120×120×130mm
Product weight equipment: 0.38kg
Packaging: 0.5kg
Ambient temperature Working temperature: -30℃-55℃
Ambient humidity Working humidity: 5%-95% (no condensation)
