Brand:AXIS
Model：AXIS M1137 MK II
Lens：2.8–13 mm

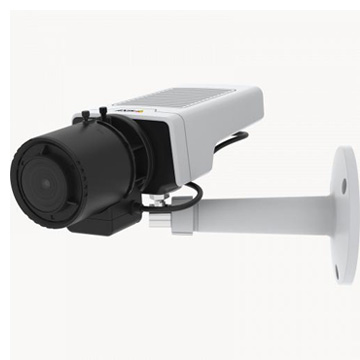

AXIS M1137 Mk II Box Camera 02484-001
5 MP affordable surveillance
AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant
DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis
Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount
enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS
Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with
H.264/H.265 significantly lowers bandwidth and storage requirements.
> Compact and flexible design
> Lightfinder and Forensic WDR
> Built-in microphone for audio recording
> AXIS Object Analytics
> Support for i-CS lenses
Camera
Image sensor Progressive scan RGB CMOS 1/2.7"
Lens Varifocal, IR corrected, CS-mount, DC-iris, 2.8–13 mm
5 MP: Horizontal field of view: 112°–24°
4 MP: Horizontal field of view: 115°–25°
5 MP: Vertical field of view: 82°–19°
4 MP: Vertical field of view: 61°–14°
Day and night Automatically removable infrared-cut filter
Minimum illumination
HDTV 5 MP 25/30 fps with Forensic WDR and Lightfinder:
Color: 0.17 lux at 50 IRE, F1.4
B/W: 0.03 lux at 50 IRE, F1.4
Shutter speed 1/33500 to 1/5 s
System on chip (SoC)
Model ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Compute capabilities Machine learning processing unit (MLPU)
Video
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution
5 MP: 2592x1944 to 160x120
4 MP: 2688x1512 to 160x90
Frame rate Up to 25/30 fps in all resolutions
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Image settings Axis Forensic WDR: up to 120 dB depending on scene, manual
shutter time, compression, color, brightness, sharpness, contrast,
white balance, exposure control (including automatic gain
control), exposure zones, fine tuning of behavior at low light,
barrel distortion correction, rotation: 0°, 90°, 180°, 270°
including Corridor Format, aspect ratio correction, text and
image overlay, privacy mask, mirroring of images
Pan/Tilt/Zoom Digital PTZ
Audio
Audio streaming Audio in, simplex, two-way audio via edge-to-edge technology
Audio encoding 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audioinput/output
External microphone input or line input, built-in microphone
(can be disabled), network speaker pairing
Network Security
Password protection, IP address filtering, HTTPSaencryption,
IEEE 802.1x (EAP-TLS)anetwork access control, digest
authentication, user access log, brute force delay protection,
signed firmware, secure boot, Axis Edge Vault, Axis device ID,
secure keystore (CC EAL4 certified)
Supported protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa
, TLSa QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP,
RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP,
SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address
(ZeroConf)
System integration
Application Programming Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T specification at onvif.org
Event conditions Audio: audio detection
Device status: above operating temperature, above or below
operating temperature, below operating temperature, IP address
removed, network lost, new IP address, storage failure, system
ready, within operating temperature
Edge storage: recording ongoing, storage disruption
I/O: digital input, manual trigger, virtual input
MQTT subscribe
Scheduled and recurring: scheduled event
Video: day/night mode, live stream open, tampering
Event actions File upload via FTP, HTTP HTTPS, SFTP, network share and email
MQTT publish
Notification via email, HTTP, HTTPS, TCP
Video recording to edge storage, pre- and post-alarm video
buffering, PTZ preset, guard tour, send video clip, send SNMP
trap, day/night vision mode, WDR mode, status LED indicator,
output port
Data streaming Event data
Built-in
installation aids
Pixel counter
Analytics
AXIS Object
Analytics
Object classes: humans, vehicles
Trigger conditions: line crossing, object in area
Up to 10 scenarios
Metadata visualized with color-coded bounding boxes
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
Applications Included
AXIS Object Analytics, AXIS Video Motion Detection, active
tampering alarm
Supported
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing Polycarbonate blend
Color: White NCS S 1002-B and Black NCS S 9000-N
Mounting ?”-20 tripod screw thread
Camera stand included
Sustainability PVC free, 20% recycled plastics
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3,
max 7.2 W, typical 4.5 W
10-28 V DC, max 6.6 W, typical 4.4 W
Connectors RJ45 10BASE-T/100BASE-TX PoE
Terminal block for one input and one output (12 V DC output,
max load 25 mA)
DC input, terminal block
3.5 mm mic/line in
Storage Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-20 °C to 50 °C (-4 °F to 122 °F)
Humidity 10–85% RH (non-condensing)
Storage
conditions
-40 °C to 65°C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KS C 9832 Class A, KS C 9835
Safety
CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1
Environment
EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Network
NIST SP500-267
Dimensions 64 x 70 x 179 mm (2.5 x 2.8 x 7.0 in)
Weight Bare bone: 165 g (0.36 lb)
With optics: 250 g (0.55 lb)
Included
accessories
AXIS T91A11 Stand White, installation guide, Windows®
decoder
1-user license
Optional
accessories
AXIS T91A04/AXIS T91A05 Camera Holders, AXIS T91B53 Telescopic Ceiling Mount, AXIS T92E20 and AXIS T93F Housing
Series, mains adaptor PS-P terminal connector, AXIS T8006 PS12,
AXIS T90B Illuminators, AXIS T8351 Mk II Microphone 3.5 mm
